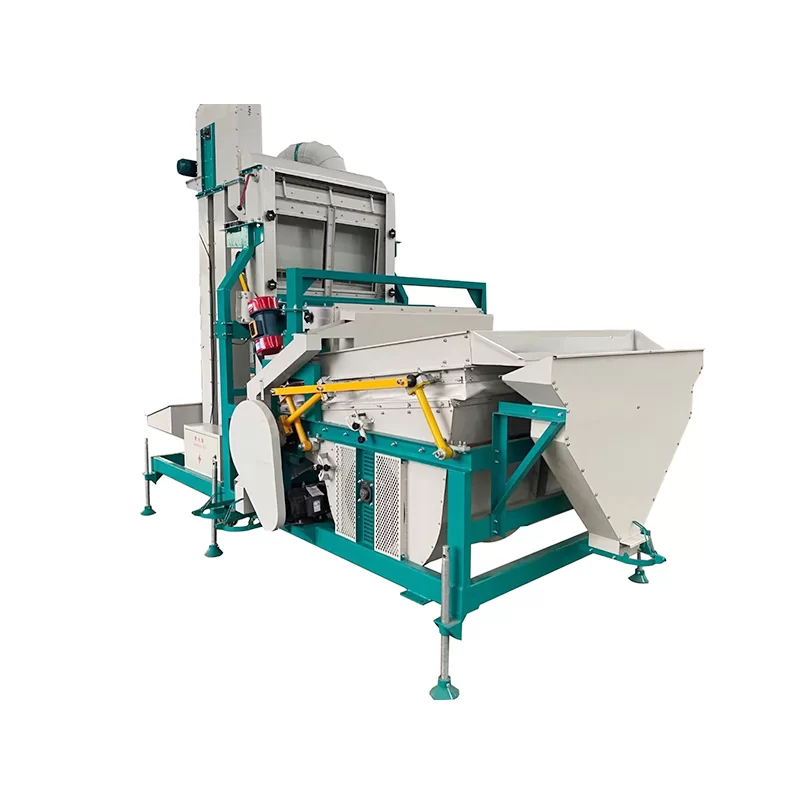

40PRO Cleaner with Gravity Table

PLC Control Intelligent Cleaner is a latest technology machine created by our company.It mainly includes the following advantages

PLC Control Screen and One-touch control;

Different from the previous machines that were simply controlled by a control switch, this machine was designed to be easier to control. We used PLC to control the entire machine, so that the machine can be started with one click. Using Siemens touch screen control, you can simply control the machine with your fingers. For example, if you need to increase the air volume, just click the fan icon and then click the + symbol.

Full closed design with environment protect;

The whole machine is a closed system, which prevents the traditional machine with specific gravity table from spreading more dust and protects the workshop environment. At the same time, combined with our PLC automatic control system, the dust cover can automatically clean itself at regular intervals to ensure good function operation.

Big capacityfor the seeds .

Considering the increasing production demand of customers, this machine is designed with larger air volume, larger screen area and larger specific gravity table. At the same time, this machine adopts a powerful bracket that far exceeds the level of its peers to make the machine run more stably. The 40pro PLC Control Intelligent Cleaner can clean 13-15t/h based on sesame and 30t/h based on soybean , wheat , etc.

The machine can use for different grain cleaning. By changing the sieves and the gravity table , the machine can clean almost all kinds of the seeds like mazie,wheat, sorghum, soybean, sesame etc. And you no need adjusting the machines every time . You only need to store different material programs on the touch screen. When you change seeds, click the required program name, and it will automatically switch to the required volume and parameters.

Finally, it is a multifunctional machine. It combines air separation, screening, specific gravity table, dust removal system and other functions to provide a purity of more than 99%.

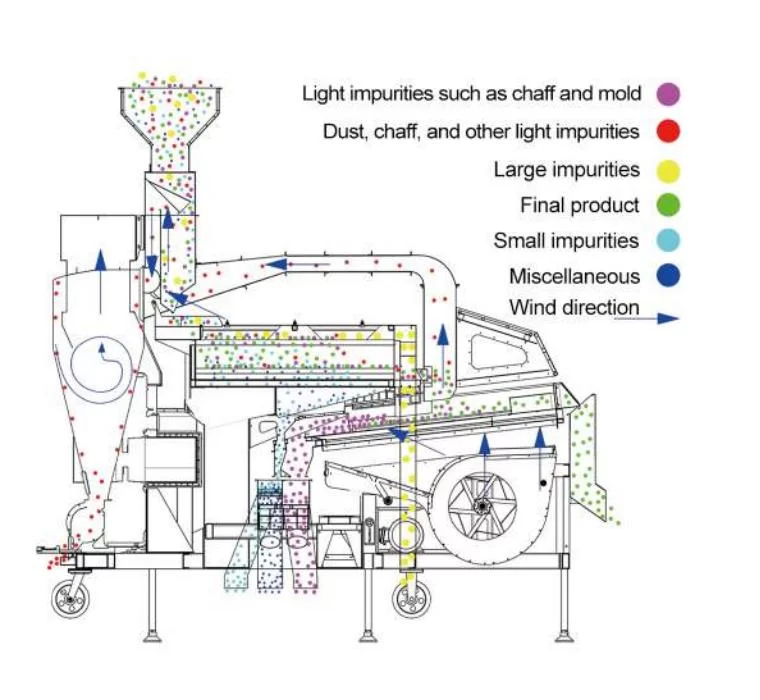

Machine Grain Flow Chart

Technical specifications
