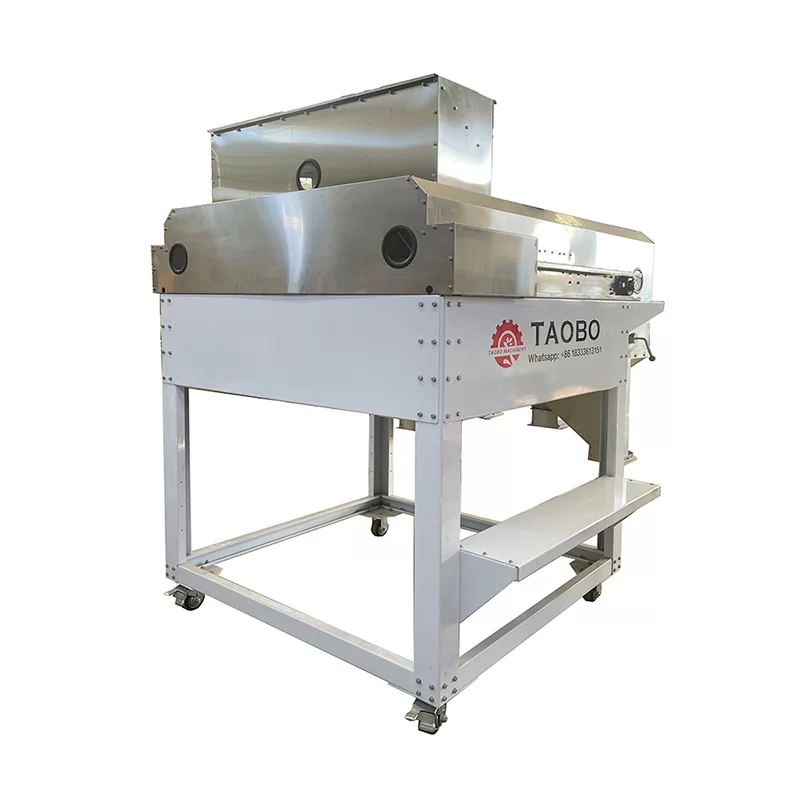

5TB-Magnetic Separator

The Magnetic separator it can processing : sesame, beans, soya beans, kidney beans, rice, seeds and different grains.

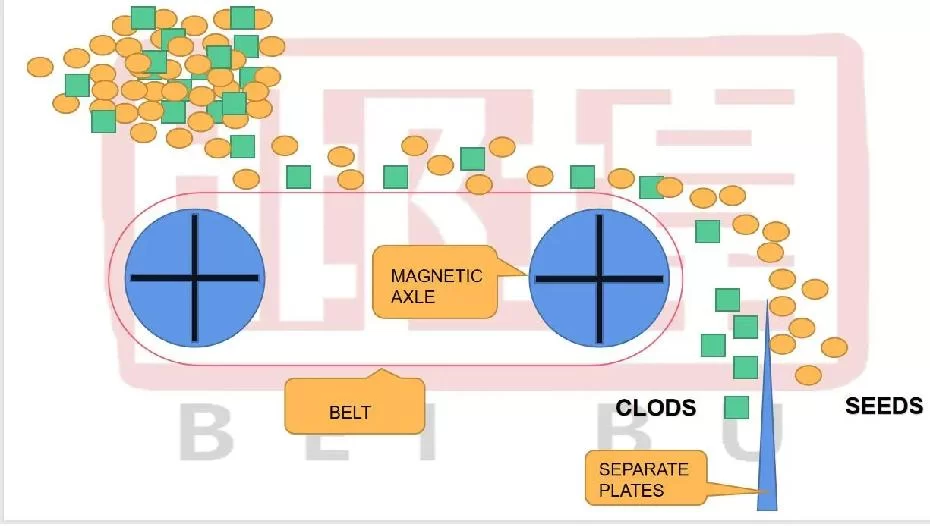

The Magnetic Separator will remove the metals and magnetic clods and soils from the material, when the grains or beans or sesame feed in the magnetic separator, the belt conveyor will transport to the strong magnetic roller, All the material will be thrown out in the end of the conveyor, because the different strength of magnetism of metal and magnetic clods and soils, their running route will change, then it will separate from the good grains and beans and sesame .

The 5TB-Magnetic Separator is stainless steel,with 18000 gauss magnet , which will protect the people outside .

The machine can work for different grain and seeds,now is mainly for beans to separate the hard soils out.

Well-known, The iron content in the earth is 5.8%, These iron elements are widely distributed in the soil. This makes the soil easily attractive by magnets. As long as the magnet is strong enough, you can divide it out.

This has led to many South American customers liking this machine, but not too many sales in Africa (except Ethiopia). We are committed to promoting this machine so that customers can use better machines and people can eat cleaner grains.

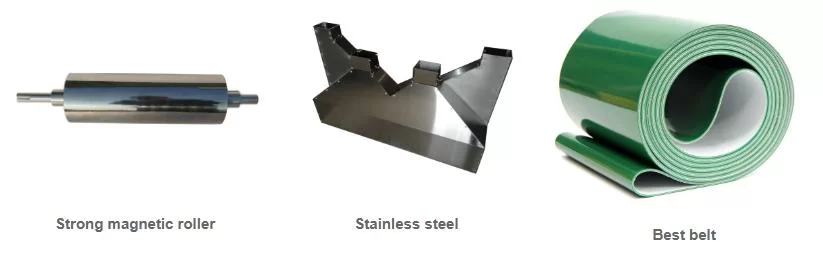

Structures

Magnetic separator consists of Bucket Elevator, Belt conveyor, Grain Exits., Frequency converter, brand motors, Japan Bearing

Low speed no broken slope elevator: Loading grains and seeds and beans to the magnetic separator without any broken

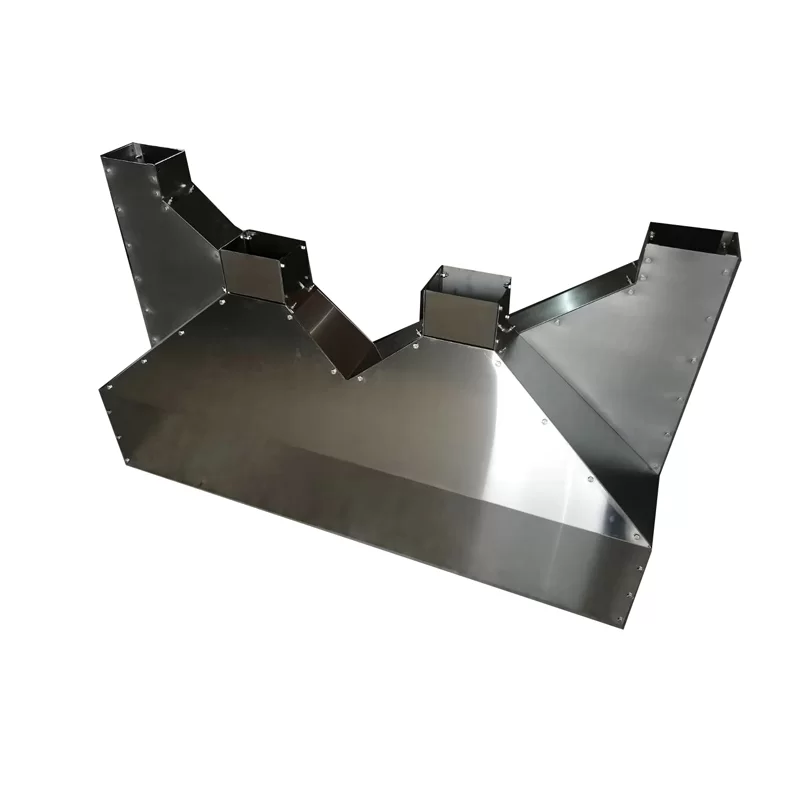

Stainless steel surface : Used for food processing

Frequency converter :Adjusting the vibrating frequency for suitable different grains, beans, sesames and rice

Features

Japan bearing

Stainless steel surface

Wide magnetic surface design 1300mm and 1500mm.

Sand blasting appearance protecting from rusting and water

The key components are 304 stainless steel structure, which used for food grade cleaning .

It is equipped with the most advanced frequency converter . It is can adjust the belt speed to suitable for different types of materials .

The Magnetic field strength of the magnetic roller is more than 18000 Gauss, which can remove all the magnetic material from the beans and other material .

Advantage

Easy to operate with high performance .

High Purity :99.9% purity especially for cleaning sesame and mung beans

High quality motor for seeds cleaning machine, high quality Japan bearing .

5-10 Ton per hour cleaning capacity for cleaning different seeds and clean grains.

Non broken low speed slope bucket elevator without any damage for the seeds and grains.

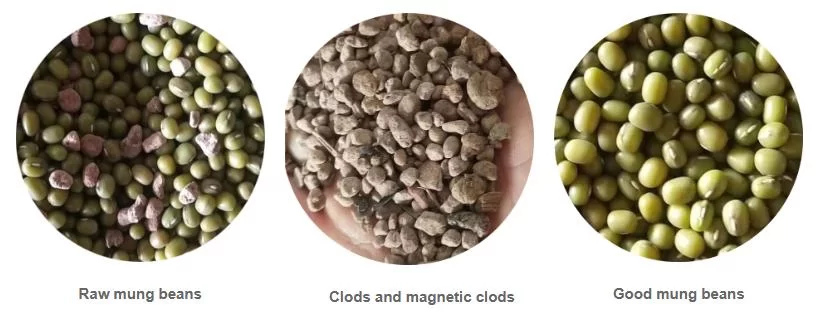

Cleaning result

Machine Grain Flow Chart

Technical specifications
