Capacity : 20-300 Tons per hour
Certification: SGS, CE, SONCAP
Supply Ability: 50 sets per month
Delivery period: 10-15 working days
Function : highly mobile continuous loading and unloading equipment. It is mainly used in places where loading and unloading sites are frequently changed, such as ports, docks, stations, coal yards, warehouses, construction sites, sand and gravel yards, farms, etc.,

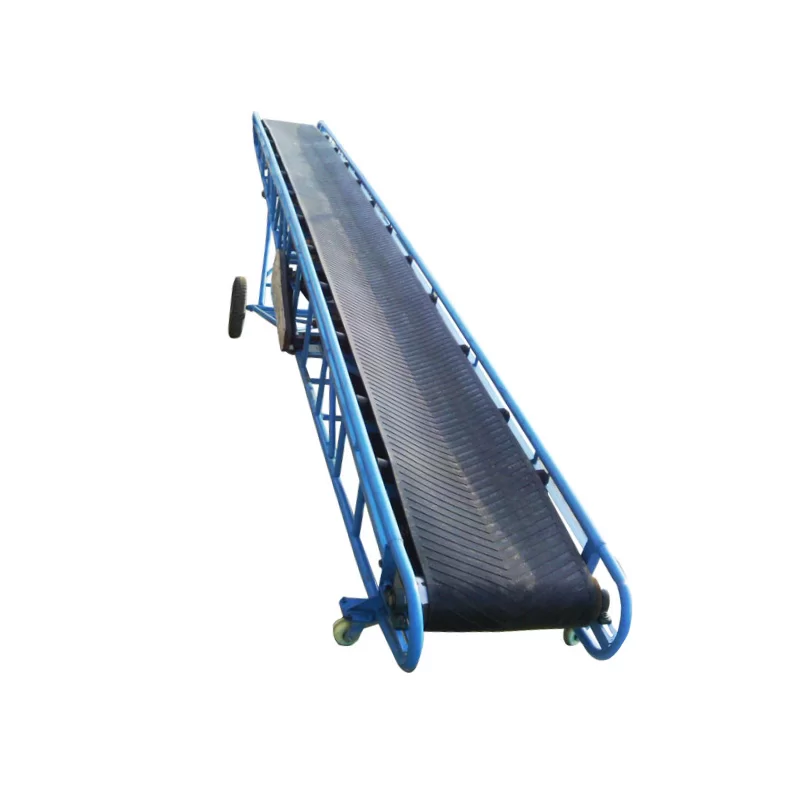

TB type mobile belt conveyor is a high-efficiency, safe and reliable, and highly mobile continuous loading and unloading equipment. It is mainly used in places where loading and unloading sites are frequently changed, such as ports, docks, stations, warehouses, construction area, sand and gravel yards, farms, etc., used for short-distance transportation and loading and unloading of bulk materials or bags and Cartons.TB type mobile belt conveyor is divided into two types: adjustable and non-adjustable. The operation of the conveyor belt is driven by electric drum. The lifting and running of the whole machine are non-motorized.
Most of our clients are using this Belt conveyor for loading the pp bags to the container for saving the time for our clients .
Application
Bulk material: cement, sand, gravel, grain, fertilizer, sugar, salt, cookies etc.
Other material: cartons, bags, machine parts etc.
Features
1.Carbon steel
2. High standardization degree
3.Easy move with special wheels
4.Cheap cost and long working life

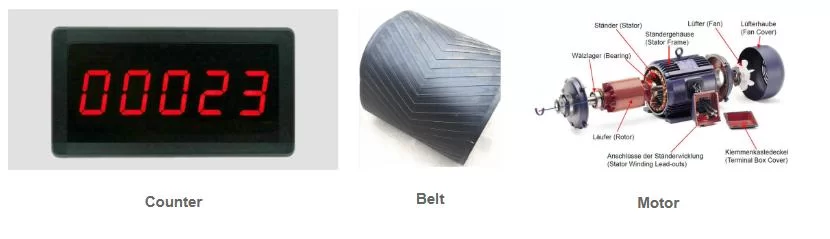

5.It can install a counter for counting
6.The adjustment speed of the belt conveyor
7.Various design form can meet different industries.
8.Simple structure, easy installation and maintenance
9..Low rate of breakdown and adapt to different use condition.
Technical specifications
Name | Model | Conveyor Belt Width(mm) | Conveyor operating speed(m/s) | Belt transmission capacity(m3/h) | Power(KW) | Voltage |
Belt conveyor | TBB-5 | 500 | 0.8-25 | 79-232 | 1.5-30 | 380V 50HZ |
TBB-8 | 800 | 1.0-3.15 | 278-824 | 1.5-40 | 380V 50HZ | |
TBB-10 | 1000 | 1.0-3.15 | 435-1233 | 3-100 | 380V 50HZ | |
TBB-12 | 1200 | 1.0-4.0 | 655-2202 | 4-180 | 380V 50HZ | |
PVC belt conveyor | TBPB-6 | 600 | 0.5-4 | 25-300 | 2.2 | 380V 50HZ |
TBPB-8 | 800 | 0.5-4 | 45-500 | 4.4 | 380V 50HZ |
