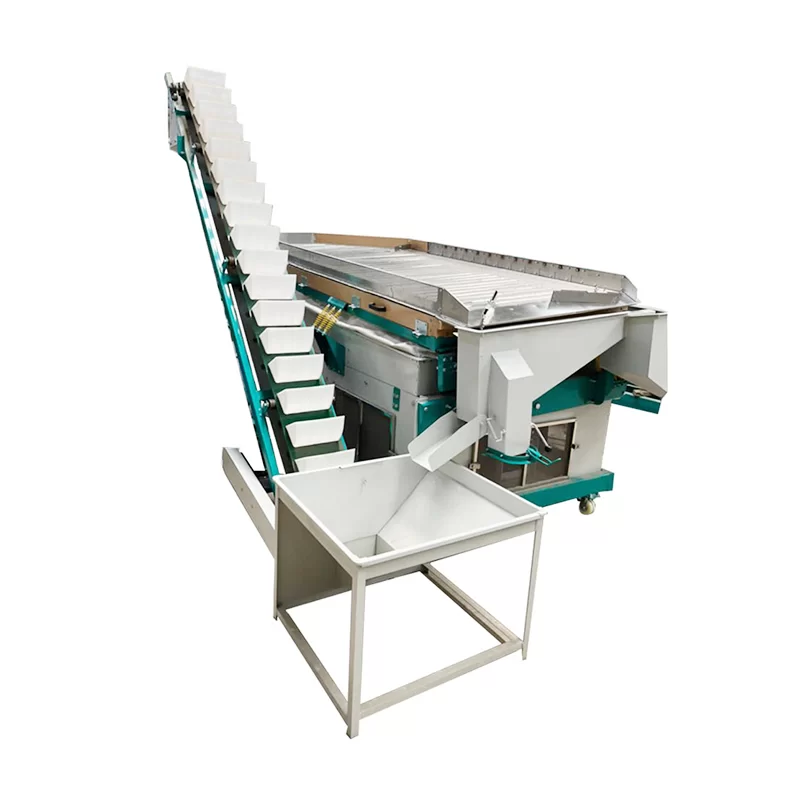

5TBG-10 Gravity Separator

The Gravity Separator based on different capacity,we have three models,5TBG-6 Gravity Separator,5TBG-8 Gravity Separator,5TBG-10 Gravity Separator;

The Gravity Separator is for separating the good grain and seeds from the bad ones,the bad ones will be like moldy,blighted,insected empty inside etc.;

Like the stone remover, it mainly includes the following functions: 1. Bracket 1. Fan 2. Gravity vibrating table.

The bracket is used to support the entire machine so that each function can work.

The Fan is to provide the air for the machine . it have 7 sets .

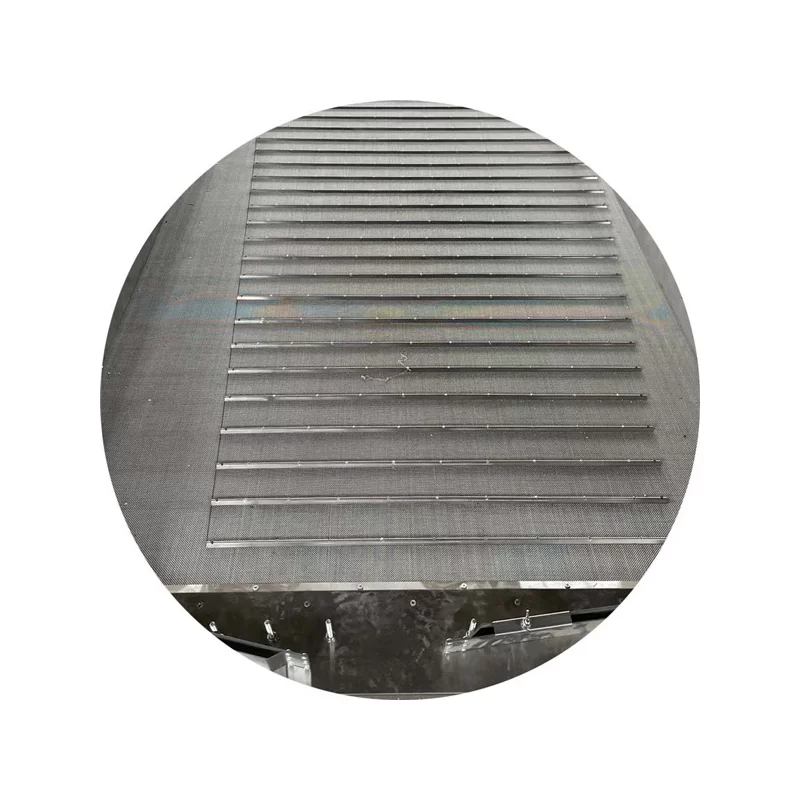

The gravity table is made of frame and it’s net .the net is stainless . At the same time, a layer of perforated screen is also included under the net . Usually, it is placed at an angle.

When working, the fan blows air upwards. The wind passes through the screen and net of the gravity table and blows the seeds into the air. The screen helps to make the wind more even. The net is used to hold the seeds, allowing wind to pass through but preventing the seeds from falling.

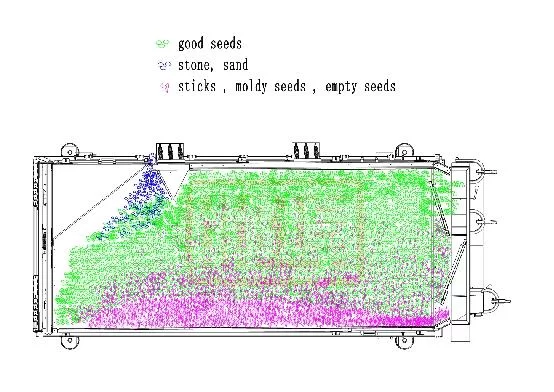

Generally speaking, there is a difference in weight between good seeds and bad seeds. For example, moldy seeds, insect-eaten seeds, straw, broken seeds, etc. Due to the difference in weight, when the wind blows towards them, the good seeds are at a lower position, while the impurities are at an upper position.The good seeds at the lower layer climb upwards due to the vibration and friction of the gravity table. The impurities at the higher layer can only flow to the lower end of the gravity table due to the lack of friction. Therefore, the two can be separated.

The specific gravity separator is a very sophisticated machine. After using different machines to remove other impurities, this machine can very accurately separate various impurities with tiny weight differences.

Structures

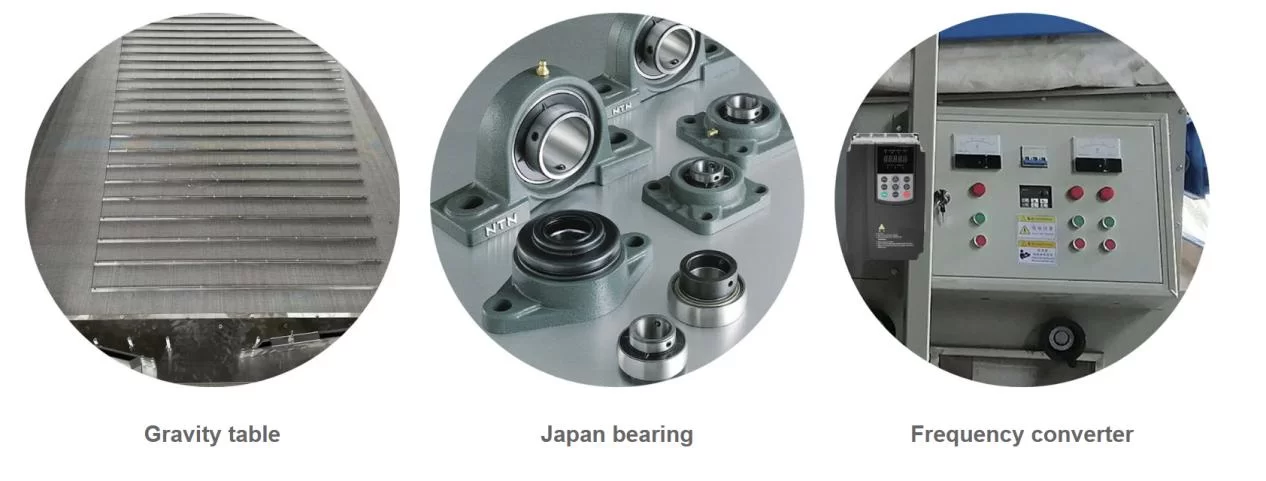

It combines low speed no broken slope elevator, Stainless steel Gravity table, grain vibrating box, Frequency converter, brand motors, Japan Bearing

Low speed no broken slope elevator: Loading grains and seeds and beans to the gravity separator without any broken, Meanwhile it can recycling the mixed beans and grains to feed the gravity separator again

Stainless steel sieves: Used for food processing

Wood frame of gravity table : for supporting long time using and high efficient vibrating

Vibrating box :Increasing the output capacity

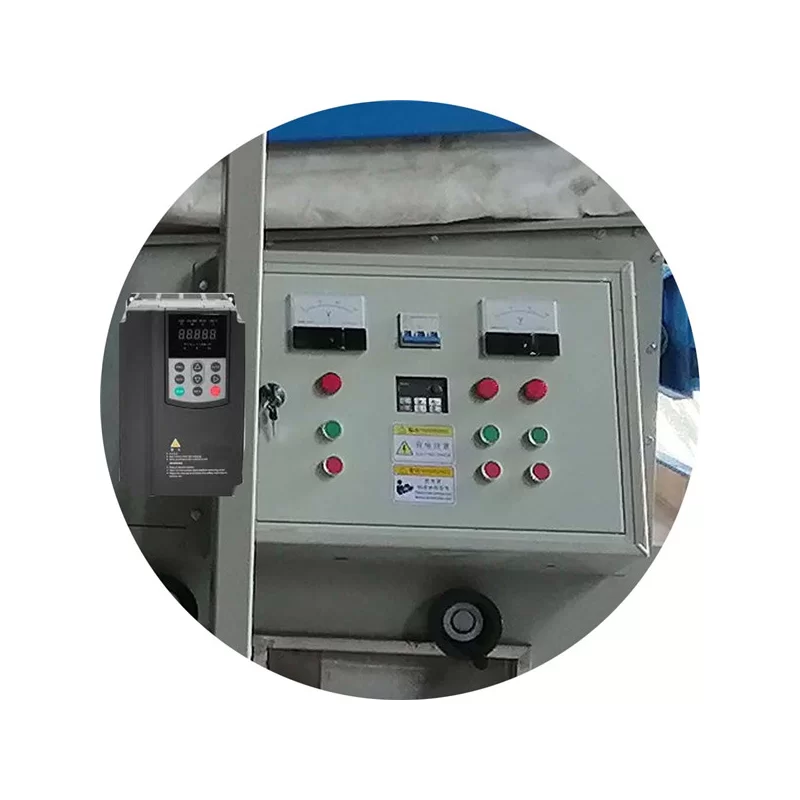

Frequency converter :Adjusting the vibrating frequency for suitable different material

Features

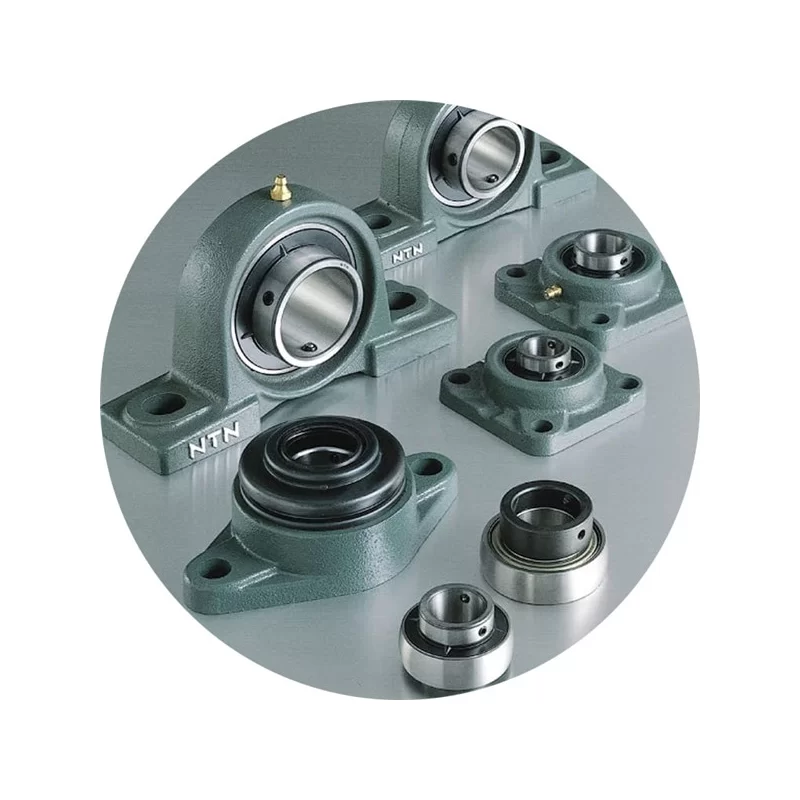

Japan bearing

Stainless steel woven sieves

Table wood frame imported from USA, durable for long time

Sand blasting appearance protecting from rusting and water

The gravity separator can remove all the blighted seeds, budding seeds, damaged seeds (by insect)

The gravity separator consists of gravity table, wood frame, seven wind boxes, vibration motor and fan motor.

The gravity separation adopts high quality bearing, Best beech and high quality stainless steel table facet.

It is equipped with the most advanced frequency converter.It is can adjust the vibration frequency to suitable for different types of materials.

Advantage

Easy to operate with high performance.

High Purity :99.9% purity especially for cleaning sesame and mung beans

High quality motor for seeds cleaning machine, high quality Japan bearing.

7-20 Ton per hour cleaning capacity for cleaning different seeds and clean grains.

Non broken low speed slope bucket elevator without any damage for the seeds and grains.

Cleaning result

Machine Grain Flow Chart

Technical specifications
