Capacity : 10-20 Tons per hour
Certification: SGS, CE, SONCAP
Supply Ability: 50 sets per month
Delivery period: 10-15 working days
Function : Bucket elevator for loading the grains and beans and pulses and seeds to the cleaner and Destoner and gravity separator

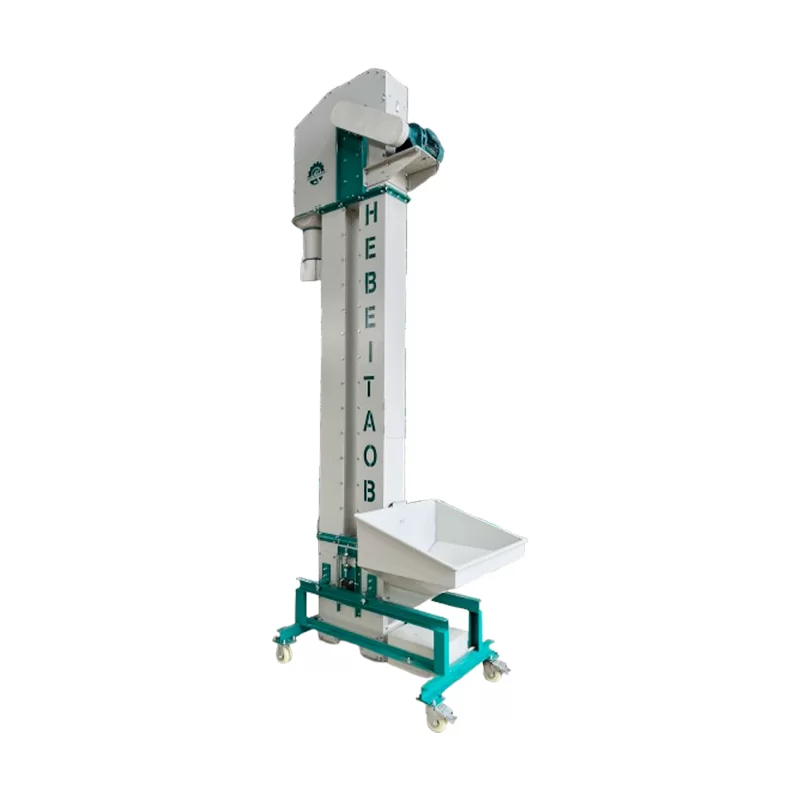

TBE series Low speed no broken bucket elevator is designed for lifting the grains and beans and sesame and rice to the cleaning machine, When our type elevator working without any broken ，For the broken rate it will ≤0.1%, it will working with high efficient, The capacity it can reach 5-30 tons per hour. It can adjust according our clients requirements.
Most of Agro exporters need to use the bucket elevator for helping lifting the material to the processing machine.
The bucket elevator it is removable, it is very convenient for our clients.
Function
The elevator adopts self weight unloading, low line speed, no throwing blanking, to prevent crushing.
The reducer motor is adopted for direct transmission to realize smooth and ultra-low speed operation without noise and vibration.
Sanding blasting and plastic spraying surface treatment.
Features
Very low speed, low broken rate
Removable, it is suitable for different Scenes
The machine runs smoothly and has been operated
Sand blasting appearance protecting from rusting and water
The high it is depends on the clients requirements, From 3.5Meter-9Meters

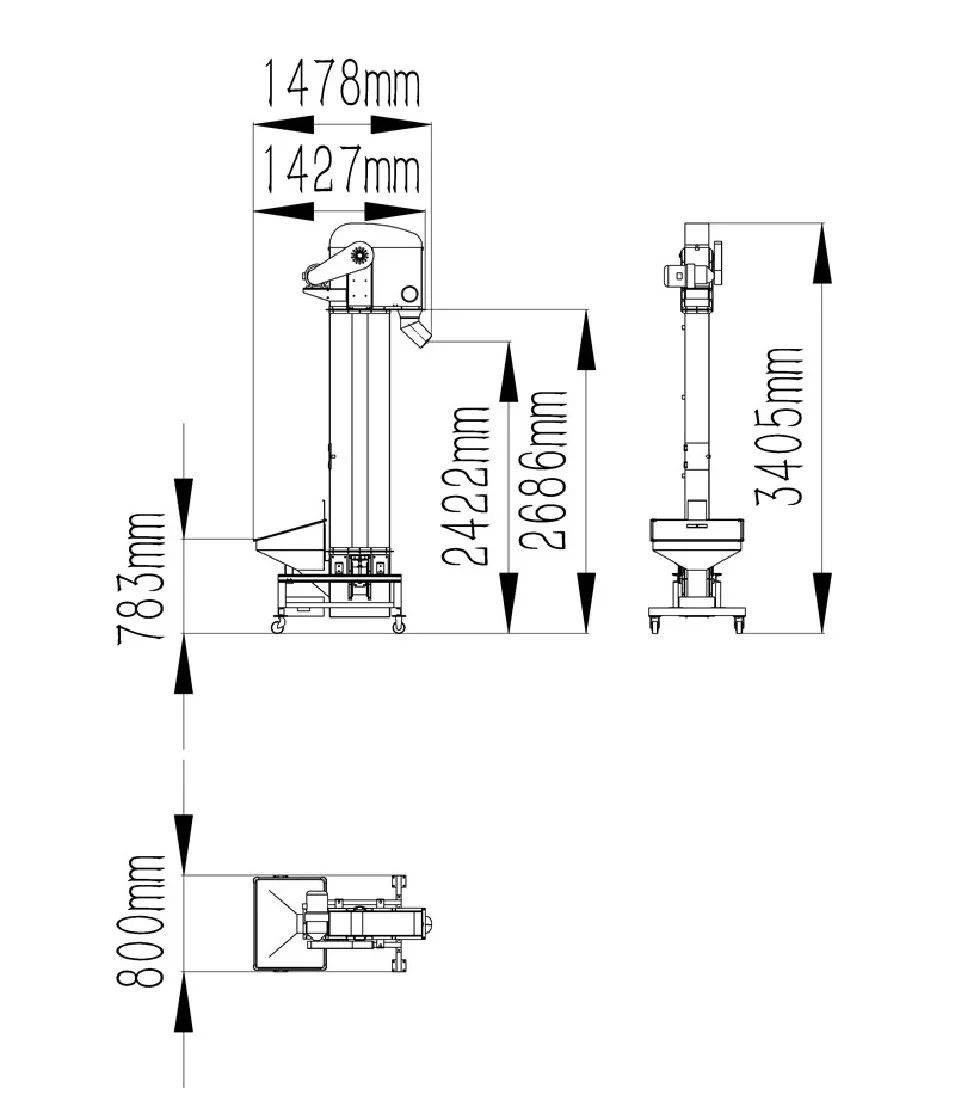

Overall Size
Technical specifications
Name | Model | Capacity(T) | Buckets | Belt width (MM) | Weight（T） | Over size L*W*H(MM) | Power(KW) |
No broken elevator | TBE-10 | 10 | LM1413 | 150 | 0.58 | 1600*800*3400 | 0.75 |
TBE-30 | 30 | DS2816 | 300 | 1.2 | 1600*800*4400 | 4 | |
TBEX-10 | 10 | LM1413 | 150 | 0.62 | 3600*850*2750 | 0.75 |
