Capacity : 20-300 Tons per hour
Certification: SGS, CE, SONCAP
Supply Ability: 50 sets per month
Delivery period: 10-15 working days
Function :The auto packing machine used for packing the beans, grains, sesame seeds and maize and so on, From 10kg-100kg per bag, electronic controlled automatic thread-cutting .

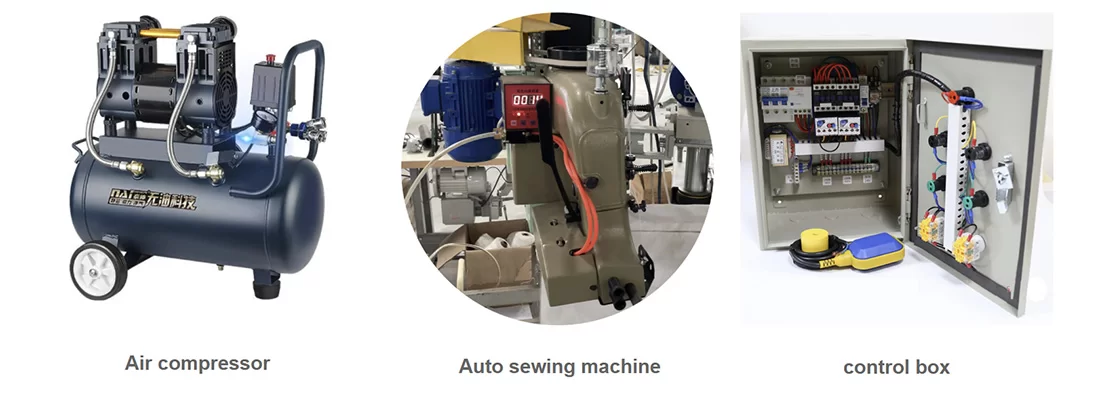

This auto packing machine consists of automatic weighing device , conveyor, sealing device and computer controller.Single scale and double scale , 10-100kg scale per bag.Quantitative packaging of granular materials in rice, seeds.feed, chemical raw materials, sugar and other industries.Specially designed three-sensor support. This structure eliminates the problems of stress point offset and signal distortion caused by uneven distribution of materials inthe weighing hopper.
Function
Auto lift conveyor,up and down automatic.
The best SMC solenoid valve can working long time.

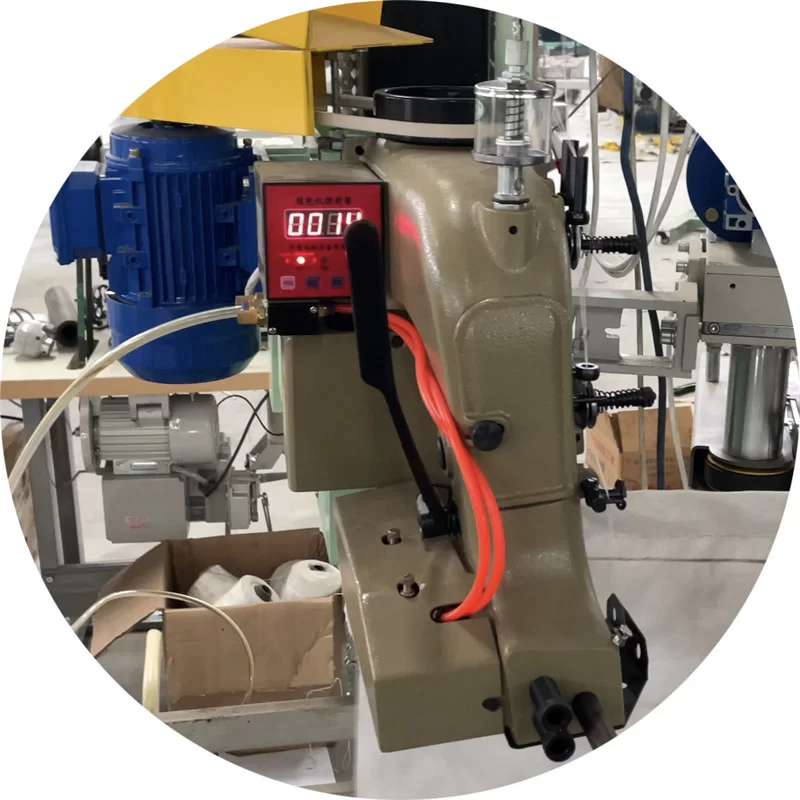

Auto sewing and thread cutting,Easy installation and operation.
All closed structer can prevent dirty from outside.
Features
Fast weighing speed ,Precise measure, small space, convenient operation
lt has the function of querying the number of packages and the quantity of packages
The parts in contact with the material are made of stainless steel, which is corrosion-resistant
Technical specifications
Name | Model | Weighing range | Power(KW) | Weighing speed | Gas consumption | Dimension (mm) | Power requirements |
Auto Packingmachine | DCS-50FE-C | 10-50Kg | 1.1kW | 200~480 Bags/Hours | (0.4~0.5)MPa 30L/min | 2847x1026x2731mm | AC220V+5% 50Hz AC380V±5% 50Hz |
